Model No.
|

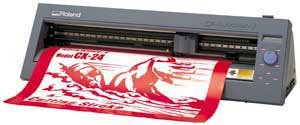

CX-24
|
|
Maximum cutting area
|
Width: 584mm Length: 24,998mm
|
|
Acceptable media widths
|
50 - 700mm
|
|
Max. cutting speed
|
400mm/sec
|
|
Blade force
|
30 - 200 gf
|
|
Buffer size
|
1 Mbyte (800 Kbytes for replot)
|
|
Instruction system
|
CAMM-GL III (mode 1 and mode 2)
|
|
Power consumption
|
0.9A/100-240V ± 10% 50/60Hz
|
|
Acoustic noise level
|
Cutting mode: < 70dB(A) Standby mode: < 40dB(A) (According to ISO 7779)
|
|
Dimensions
|
850(W) x 300(D) x 240(H) mm
|
|
Weight
|
14 kg
|
|
Operating temperature
|
5-40°C (41-104°F)
|
|
Operating humidity
|
35-80% (non-condensing)
|
|
